RAW TCP is limited to max 8 connections, with HTTP the Instreamer allos maximum 6 connections at the same time. Our favorite mode is RTP streaming (more details in our RTP guide) !! RTP is UDP based which is the best for realtime streaming with lowest latency. With this Exstreamer firmware you can use RAW UDP, RAW TCP, HTTP or RTP. URL = If you have changed the port number on the Instreamer´s “Stream to” entry to anything else than 0 or 80 (e.g to 3333) then you have to use the following URL line : Exstreamer standard firmware The default Port 0 together with “Internet Radio” in the “Stream to” line would mean also port 80.ġ. Streaming / “Stream to” = Internet Radio : 0.0.0.0 : 80īoth are default values. This opens a BRTP listen port where multiple Exstreamers can pull a stream from ! Note, this is only on the first “Stream to” entry available, not on the entries 2-8 !!!
Streaming / “Stream to” = RTP : (Exstreamer´s IP): 4444 Īudio / “Bit Reservoir Mode” = kept empty This firmware is downloadable from (under downloads). It´s a dedicated streaming application with enhanced monitoring features and stream backup feature ! This firmware is a special firmware which can run on all Exstreamer platforms. Using the Exstreamer Streaming Client firmware Ī delay of 200 – 250 ms by using MP3 should run in the most stable LANs. In our test lab we have reached by using MP3 a lowest possible delay of 175 ms, lower delays (below 100 ms) are possible by using PCM or G.711.
#Barix instreamer 100 updates plus#
3,75 seconds plus network delay, which is almost nothing in a local LAN. A higher audio bandwidth fills the buffer faster and causes a lower delay.Ĭalculation example with a 128 kbit stream and a default buffer of 60000 byte:ġ28000 / 8 = 16000 bytes /s 60000 / 16000 = 3,75 s The delay can be from below 200 ms up to serveral seconds, depending from the used audio bandwidth (Codec, frequency/quality) in the Instreamer and the audio buffer (Start Threshold) in the Exstreamer. In the Exstreamer web setup on parameter “Start Threshold” (under Streaming) you can adjust the delay. DHCP is also possible but a fix IP has some advantages. It´s recommended to use the Exstreamer Streaming Client firmware!įirst you always should assign fix IP addresses to each unit.

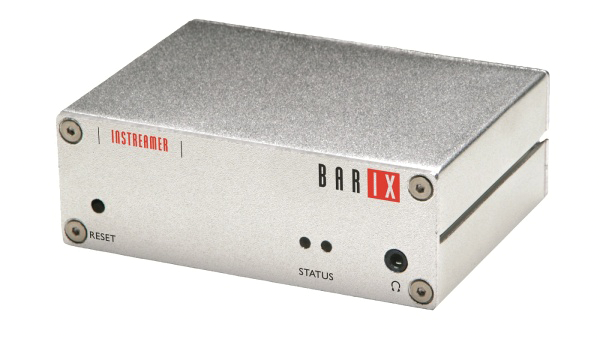

There are different ways to send analog (line-in) audio from a Barix Instreamer over the network to the Barix Exstreamer where your speakers could be connected.Īdditionally to the modes mentioned below, you can send audio from the Instreamer or the Annuncicom to the Exstreamer´s “Priority Ports”, this works in all Exstreamer modes.īelow are shown configuration examples with the Streaming Client firmware and the Standard firmware for the Exstreamer.
#Barix instreamer 100 updates how to#
How to configure a Instreamer-Exstreamer audio connection within the same LAN
